Custom Logo Pendant Guide: Turning 2D Artwork into 3D Jewelry

Transforming a flat 2D logo into a custom logo pendant requires translating digital graphic vector lines into multi-layer 3D relief, maintaining minimum metal wall dimensions to hold stone prongs securely, and engineering a proportional bail that helps the piece hang balanced without rolling forward against the chest. Many creators, independent music artists, and brand founders assume that simply submitting a flat black-and-white vector automatically yields a finished piece of jewelry. In reality, hairline lines, color gradients, and sharp digital corners must be adapted for lost-wax casting and gemstone pavé. Understanding the translation from 2D artwork to 3D jewelry CAD ensures your custom logo necklace carries bold physical presence, solid tactile weight, and clean light reflection across every contour.

Logo Complexity Category	Recommended Physical Scale	CAD Relief Structure	Ideal Chain Pairing	Best Application
Minimalist Emblem / Crest	1.0"–1.4" (Compact profile)	Single-plane raised border + pavé core	4mm–6mm Tennis Chain or Rope	Daily executive wear, subtle brand insignias
Tiered Music / DJ Tag	1.6"–2.2" (Medium statement)	Dual-level 3D step relief + vented back	8mm–10mm Iced Cuban Link	Stage performance, record label artists
Graphic Mascot / Character	2.0"–2.8" (High-impact piece)	Multi-tier sculptural contours + enclosed lattice	10mm–14mm Heavy Cuban Link	Brand mascots, gaming teams, festival sets
Baguette-Framed Corporate Seal	1.8"–2.4" (Geometric layout)	Channel-set baguette border + micro-pavé field	9mm–12mm Prong Cuban Link	Corporate milestone gifts, executive jewelry

Artwork Preparation: Vector Paths vs. Raster Screenshots

The manufacturing journey of a bespoke logo pendant begins with digital file preparation. Customers frequently ask whether a screenshot from Instagram or a JPEG saved from a website can be used directly for casting. While jewelry CAD designers can trace clean raster images, starting with clean vector artwork drastically speeds up the modeling process and prevents subtle distortion of your brand typography. If your source artwork is a portrait rather than a graphic logo, follow our memorial picture pendant photo guide for face-safe cropping, restoration, engraving, and proof approval.

When preparing your artwork, keep these file realities in mind:

• Vector Files (AI, SVG, EPS, PDF): These are mathematically defined lines that can be scaled infinitely without pixelation. A 3D CAD modeler imports vector paths directly to extrude base walls and define prong coordinates.
• Handling Graphic Gradients & Shadows: Digital graphics frequently rely on soft drop-shadows or color gradients to suggest depth. In physical metal, gradients cannot be stamped or poured. Designers translate digital gradients into physical step-relief—using higher metal planes for lighter tones and recessed textured fields for darker shadows.
• Closed Contours: Every line in your 2D artwork must form a closed loop. Open brushstrokes work on paper, but in 3D casting, every shape must represent an enclosed volume of molten metal.

Why Thin 2D Vector Lines Fail in Physical 3D Jewelry

The single most common issue when translating graphic art into a custom logo pendant is attempting to reproduce hair-thin line weights. On a high-resolution display, an ultra-fine 0.5-point vector stroke looks sharp and legible. However, physical lost-wax casting and stone setting require structural metal volume. If a graphic stroke is narrower than roughly 1.2mm, it cannot physically support handset micro-prongs to hold stones, and thin isolated elements are prone to bending or snagging under accidental contact.

An experienced custom logo pendant maker evaluates artwork before production begins. Fine script lettering and tight flourish lines are strategically thickened in 3D CAD modeling to build stable structural walls. Where graphic details are too compact to seat prong-set stones without crowding, skilled designers transition those elements into polished high-relief metal borders or clean, frosted negative spaces. This adjustment preserves the recognizable visual character of your logo while providing the physical durability needed for everyday wear.

Creating Visual Depth: Multi-Level Relief vs. Flat Stamped Metal

A well-crafted custom logo pendant should read like a sculpted piece of fine jewelry, not a flat printed coin or promotional token. Achieving visual presence on the chest requires multi-level Z-axis relief.

Rather than dropping all artwork elements onto a single flat sheet, custom jewelry modelers arrange your logo into distinct architectural tiers:

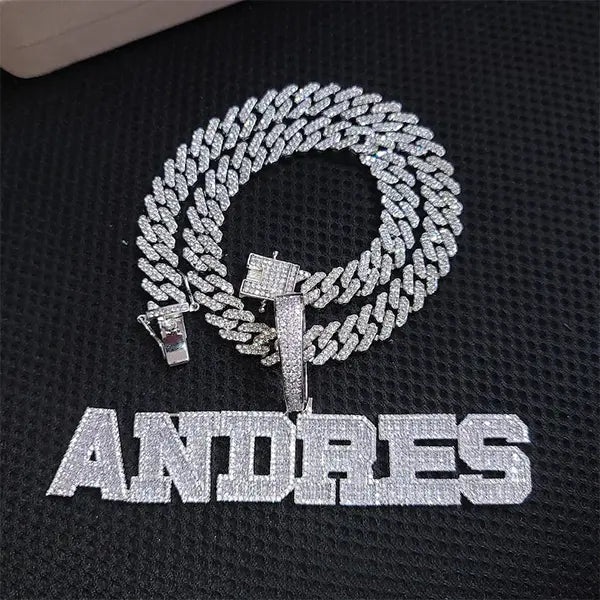

• The Foreground Tier: The primary letters, crest silhouette, or central icon sit at the highest elevation, catching direct ambient light and establishing immediate recognition. Pieces like our handcrafted Micro-Pave Block Custom Name Pendant demonstrate how clean geometric layering creates sharp, architectural edges.
• The Midground Tier: Secondary text, framing borders, or accent banners sit slightly recessed. These are often treated with contrasting surface finishes—such as polished gold bordering an iced field—to emphasize visual separation.
• The Recessed Background: Darker recessed fields or pierced negative spaces create natural contrast, making the foreground emblem stand out sharply even from several paces away.

Weight Management and Custom Lattice Backplates

One of the least discussed aspects of large custom pendants is total wearability. An oversized corporate seal, gaming mascot, or record label emblem measuring 2.5 inches across would weigh well over 100 grams if cast as a solid, solid-backed block of brass. While heavy jewelry has appeal, excessive weight causes the pendant to pull uncomfortably on the neck and strains necklace links over a full day of wear.

To strike the ideal balance between solid hand-feel and daily comfort, quality custom pieces utilize a custom-pierced lattice backplate. Rather than leaving the reverse side as an open, unfinished hollow cavity, jewelers enclose the back with a ventilated geometric lattice. This plate provides crucial structural rigidity against impacts and prevents the outer shell from deforming. Crucially, the open ventilation allows natural body perspiration and routine rinse water to drain freely, rather than trapping moisture and residue behind the stone pavilions.

Stone Selection: 5A CZ vs. Moissanite for Logo Pavé

When selecting stones for an intricate emblem or mascot, stone clarity and setting precision define the final brilliance. High-grade custom logo jewelry relies on individually hand-set prongs rather than machine-pasted crystal sheets.

For most creators, what jewelers commonly refer to as 5A cubic zirconia offers crisp optical performance and bright white reflection across tight pavé clusters. Review our guide on 5A cubic zirconia quality standards to understand how facet symmetry and consistent stone sizing deliver an even, unbroken sheet of shine across irregular shapes. For buyers looking for superior scratch resistance and fiery rainbow dispersion, a custom logo moissanite pendant offers a durable premium alternative. If you are weighing both stones for your project, our comprehensive CZ vs Moissanite iced out jewelry value guide breaks down the optical characteristics, durability differences, and cost considerations of each.

Bail Clearance and Gravitational Balance: Fitting Your Chain

An oversized emblem paired with an undersized bail leads to constant frustration. The bail—the mechanical loop connecting your pendant to the chain—must be sized to pass the chain's clasp and link profile easily, while sitting at an angle that keeps the piece facing forward.

• Internal Clearance: Standard pre-made bails rarely accommodate chains wider than 5mm. For larger Cuban-link setups, we typically design bails with around 10mm to 14mm of internal clearance, allowing heavy links and end-caps to slide through without binding. Reference our custom pendant sizing and bail clearance blueprint for dimensional planning.
• Center-of-Gravity Anchoring: Asymmetrical logos—such as slanted cursive signatures, irregular mascots, or musical notes—carry uneven lateral weight. If the bail is mounted at the exact geometric center rather than the gravitational center of mass, the heavier side will pull downward, causing the piece to hang crooked. Experienced designers calculate mass distribution during 3D modeling, which helps the pendant hang more evenly against the chest.

Finishing Choices: Gold Plating, Rhodium & Two-Tone Contrasts

Whether crafting a warm custom gold logo pendant or a sleek rhodium-finished silver piece, surface finish quality determines how long crisp details remain sharp. Raised outer edges rub continuously against clothing throughout the day, making basic flash dip-plating vulnerable to quick wear.

Vacuum Physical Vapor Deposition (PVD) coating applies 18K yellow gold, white rhodium, or rose gold in a vacuum environment, creating a tightly bonded, durable surface layer over the cast base metal. As detailed in our gold plated vs vermeil vs solid gold guide, PVD finishes offer dependable protection against everyday clothing friction, sweat, and tarnishing. For multi-colored logos, two-tone electroplating allows different brand sections—such as gold lettering surrounded by white rhodium pavé borders—to mirror the color separation of your original graphic.

Matching Your Logo Pendant with the Right Chain

To achieve a balanced look, the physical weight and link gauge of your chain must match the scale of your custom emblem:

• For Compact Logos (Under 1.5 inches): Pair with a 3mm to 5mm tennis chain or a 4mm rope chain. A slim, elegant chain keeps visual focus centered on the fine details of your personal insignia.
• For Mid-Sized DJ & Artist Tags (1.6 to 2.2 inches): Pair with a 6mm to 8mm Cuban link chain. This creates a solid, balanced chest presence without overwhelming the custom centerpiece. Consult our Cuban chain width guide to compare link sizes on neck.
• For Massive Stage & Crew Pieces (2.4 inches and above): Demand the mass of a 10mm to 14mm heavy Cuban link to support the pendant's physical pull comfortably.
• Chest Drop Placement: An 18-inch length rests near the collarbone, while a 20-inch or 22-inch drop allows the emblem to sit cleanly over t-shirts and hoodies. Check our men's chain length chart for exact collar-to-sternum references.

The 5-Step Custom Production Process: What to Expect

Ordering custom jewelry involves multiple specialized craft stages. Knowing the workflow helps set realistic expectations from initial design to final unboxing:

• Step 1: 2D Vector Review & Proportioning: Artwork is evaluated for line thickness, stone seating clearance, and outer silhouette balance.
• Step 2: 3D CAD Modeling & Customer Approval: A multi-angle 3D digital render is generated, showing exact stone placement, relief depths, and bail dimensions for your sign-off.
• Step 3: High-Resolution 3D Printing: The approved CAD file is printed into a high-precision castable resin wax model.
• Step 4: Vacuum Lost-Wax Casting: The resin is invested into a ceramic mold, melted away, and replaced with molten jewelry brass under vacuum pressure.
• Step 5: Hand Setting, Polishing & PVD Coating: Prongs are individually prepped, 5A CZ or moissanite stones are hand-set, the piece is polished through multiple stages, and the final multi-layer PVD finish is bonded to the surface.

Explore our master custom name necklaces guide for broader styling advice, or browse our current catalog in the custom CZ letter pendants collection to see real-world custom creations.

Frequently Asked Questions

What file format is best for making a custom logo pendant?

Vector files such as AI, EPS, or SVG are ideal because they provide mathematically clean outlines that import directly into jewelry CAD software. High-resolution PNG or PDF files with strong contrast can also be converted, while blurry smartphone photos require manual artwork redrawing before 3D modeling can start.

Can any company or band logo be turned into an iced-out pendant?

Almost any graphic logo can be adapted into physical jewelry, provided delicate graphic elements are adjusted to meet casting tolerances. Very thin lines under 1.2mm are widened, and overlapping elements are arranged into multi-tier relief to ensure stone setting stability and long-term durability.

Why does my custom pendant hang tilted on my neck?

Asymmetrical or diagonal logos carry uneven lateral weight. If the bail is placed at the visual center rather than the gravitational center of mass, the heavier side pulls downward, causing the pendant to hang crooked. Experienced jewelers calculate mass balance during CAD modeling so the piece hangs evenly.

How big of a bail do I need for a Cuban link chain?

Because the clasp and end-caps of a Cuban chain are wider than the links themselves, your bail should have an internal opening at least 2mm wider than the chain's nominal size. For an 8mm Cuban chain, a bail with an internal clearance of 10mm to 11mm ensures smooth, snag-free fitting.

How long does a quality custom logo pendant last?

With proper care, solid jewelry brass construction and multi-layer PVD finishing can provide long-lasting everyday wear. To preserve prong integrity and surface luster over time, avoid wearing your piece in chlorinated swimming pools or during heavy contact sports.
